Göbel Automatic umbrella (MMA) welding helmet welding helmet MIG MAG TIG plasma

Göbel Automatic umbrella (MMA) welding helmet welding helmet MIG MAG TIG plasma

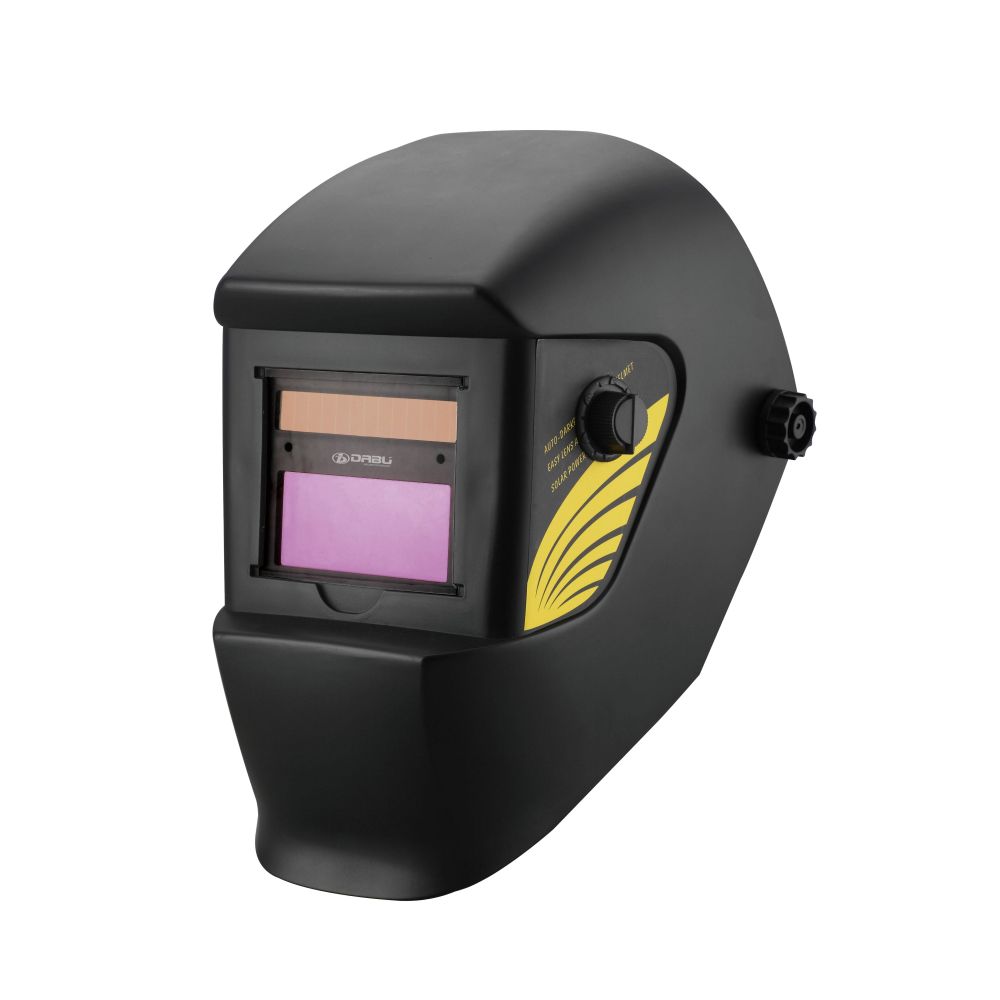

With this automatic welding helmet, your eyes are optimally protected from blinding during welding work via a built-in automatic darkening filter (ADF).
Lieferzeit
2-3 Tage
€51.59
Incl. 19% VAT , excl. Shipping Cost
€51.59 / 1 Stück (St)
Lieferzeit, Deliverytime
Delivery time: 2-3 Tage
Price by prepayment: xyz,xx
SKU
201600
Apple Pay
Description

Welding helmet welding helmet automatic shield (MMA) MIG MAG TIG plasma.

With this automatic welding helmet your eyes are optimally protected against blinding during welding work by a built-in automatic darkening filter (ADF).

Two built-in light sensors record photoelectronically the light change state (welding arc) during the welding process and react immediately. The liquid crystal field darkens in 1/15000 second to a previously set dark value and thus protects your eyes from harmful radiation in the UV and IR range.

The comfortably fitting helmet shell, adjustable to any head shape and light weight, offers additional protection for your face against sparks.

The automatic welding helmet is suitable for electrode welding (MMA) / MIG / MAG / TIG as well as plasma welding and plasma cutting.

Technical data:

  • Field of vision (mm): 90x35
  • light filter cassette (mm): 110x90x9
  • light dimming: DIN4
  • adjustable darkening: DIN9 to DIN13
  • darkening time: 0,0000667 seconds
  • back delay time: 0.1 to 1 second, adjustable
  • response sensitivity: low to high, adjustable
  • Power supply: solar + 2 AAA alkaline,
  • incl. UV protection and IR protection: DIN 16
  • Working temperature: -5°C to +55°C
  • Weight: 480g

Helmet settings:

The automatic welding helmet has three settings to give your eyes the right view, but protect them from harmful radiation perfectly.

1. DARKENING (knob on the outside of the helmet)

With the knob on the outside of the helmet, you can change the level of darkening in the liquid crystal field. The correct setting range for the various welding techniques is shown in the table below in relation to the welding current set.

2. back delay (delay - setting inside of helmet)

The adjustable back delay time is used for delayed brightening of the liquid crystal field and can be set from 0.1 to 1.0 seconds. The short setting time (0.1 to 0.25 seconds) is suitable for spot welding or short seam welding operations. The long setting time (0.85 - to 1.0 seconds) is suitable for high current welding with a long afterglow phase. The medium setting time (0.25 to 0.8 seconds) is suitable for most indoor and outdoor welding operations.

3. reaction sensitivity (sensitivity - setting inside the helmet)

The reaction sensitivity is adjusted according to the ambient light and the welding process. In general, the sensitivity should be set as follows: In a bright environment or during high current welding, set the control to minimum (Lo).

Your advantages with us
  • Shipping only 5.95 € within Germany
  • Fast shipping, many items in stock
  • Free shipping from 200€ within Germany
  • Professional advice by mail or telephone
  • Purchase on account possible
Data sheet
Lieferzeit 2-3 Tage
EAN 4029339704843
Hersteller Artikel Nr. 70484
Hersteller Göbel
Pestizid No
Anwendungshinweise

Helmeinstellungen:

Der Automatik Schweißhelm hat drei Einstellungsmöglichkeiten, um Ihren Augen den richtigen Durchblick zu ermöglichen, sie jedoch vor schädlichen Strahlungen perfekt zu schützen.

1. ABDUNKELUNG (Drehkonpf Helmaußenseite)

Mit dem Drehknopf auf der Helmaußenseite lässt sich die Abdunkelung im Flüssigkeitskristallfeld verändern. Den korrekten Einstellbereich bei den verschiedenen Schweißtechniken zeit die nachfolgende Tabelle in Abhängigkeit mit dem eingestellten Schweißstrom.

2. RÜCKVERZÖGERUNG (Delay - Einstellung Helminnenseite)

Die einstellbare Rückverzögerungszeit dient der verzögerten Aufhellung des Flüssigkeitskristallfeldes und lässt sich von 0,1 bis 1,0 Sekunden einstellen. Die kurze Einstellzeit (0,1 bis 0,25 Sekunden) ist geeignet für Punktschweißen oder kurze Nahtschweißarbeiten. Die lange Einstellzeit (0,85 - bis 1,0 Sekunden) ist geeignet für Hochstromschweißen mit langer Nachglühphase. Die mittlere Einstellzeit (0,25 bis 0,8 Sekunden) ist geeignet für die meisten Indoor- und Outdoor-Schweißarbeiten.

3. REAKTIONSEMPFINDLICHKEIT (Sensitivity - Einstellung Helminnenseite)

Die Reaktionsempfindlichkeit wird entsprechend dem Umgebungslicht und dem Schweißverfahren eingestellt. Grundstzlich sollte die Empfindlichkeit wie folgt eingestellt werden: Bei heller Umgebung oder bei Hochstromschweißen den Regler auf Minimum (Lo) regeln.
