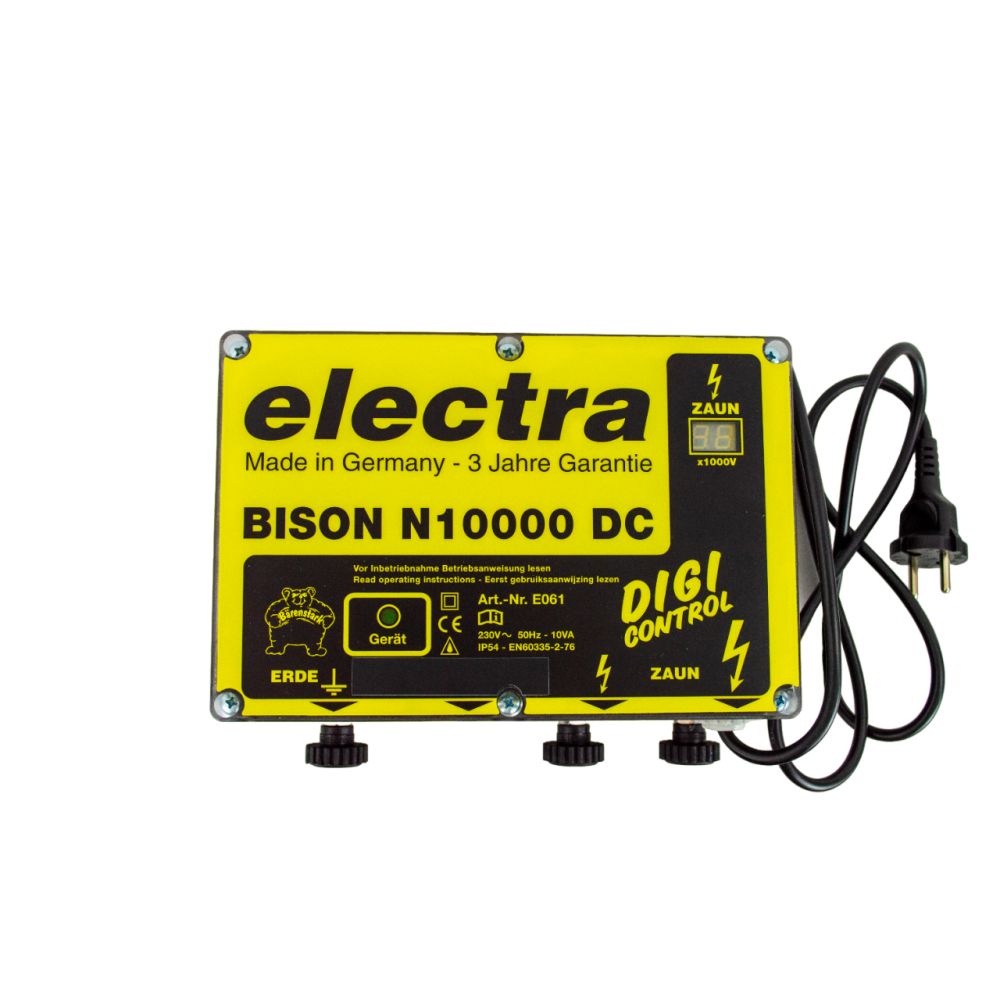

Elektra Weidezaungeräte Bison N 10000 DC, high - performance power supply

Bison N 10000 DC, high performance power supply unit from Göbel

Features

• High-performance power supply unit
• very high power reserves
• for sheep nets, for game defence and for long fences
• for most difficult conditions
• extremely low impedance
• with LED earth quality control
• with digital fence voltage display
• with 30-step fence test, device check and earthing test

Recommended use:

The Bison N 10000 DC high performance power supply is a newly developed product with maximum performance for difficult fencing applications. With maximum power requirements, it is used for effective game defence and for extremely long fences up to 125 km. The circuit has a particularly low impedance, which makes it very effective and absolutely destroys vegetation.With the help of a device control display, a digital fence voltage display and an LED grounding control display, monitoring of the grounding quality, the device shows you all important points digitally. By using the second fence output with reduced power, sensitive animals can be herded.

Technical data

• Operating voltage: 230 V strong 230 V extra strong
• Open-circuit voltage: approx. 9500 V approx. 10000 V
• Voltage at animal contact: approx. 6900 V approx. 8500 V
• Voltage at 500 Ohm (short circuit): approx. 3300 V approx. 5500 V
• Pulse energy: approx.1J approx.5J
• Power consumption: 15VA 15VA
• max. fence length (CEE): approx. 20km approx. 320km
• rec. Fence length (depending on vegetation): 5-15km 25-125km
