Güde Güde Inverter Generator Q9 ISG 1200-1

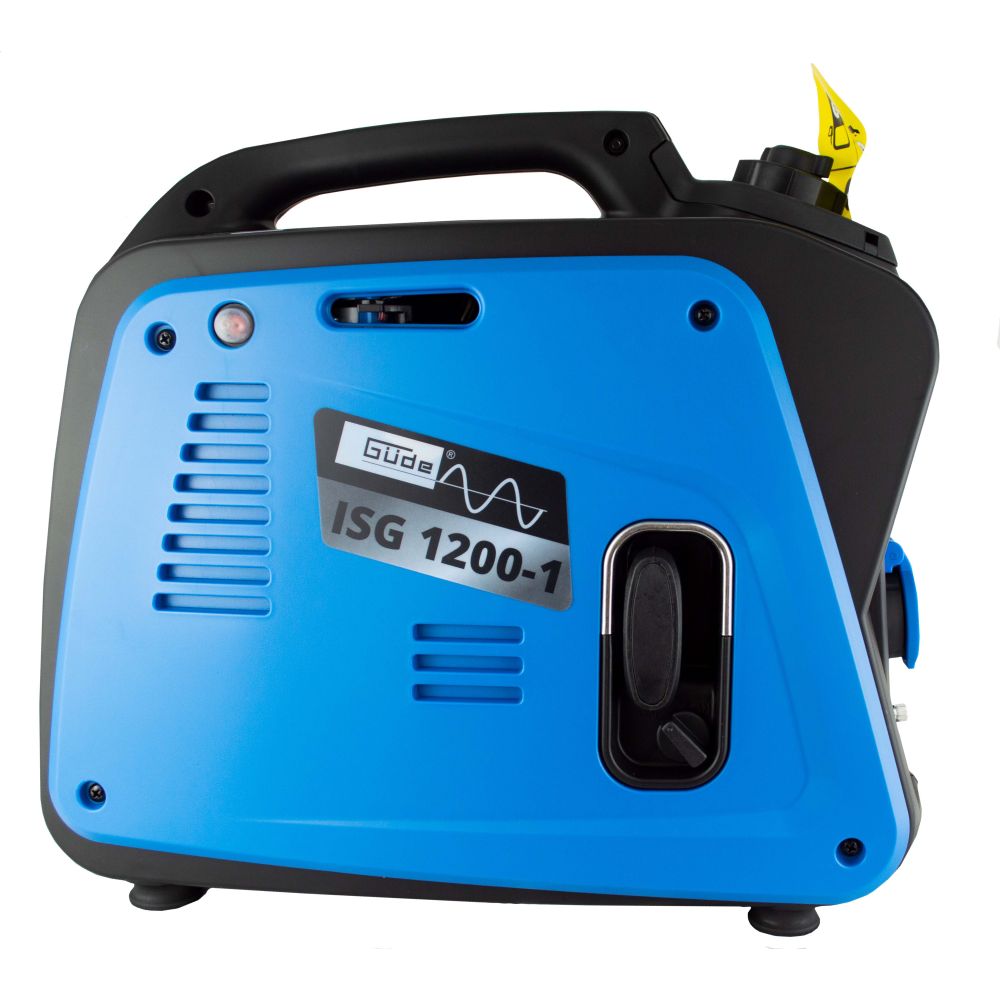

Güde - Inverter power generator Q9 ISG 1200-1

The ISG 1200-1 inverter power generator from Güde contains a 4-stroke OHV petrol engine and is ideally suited for sensitive, electronic consumers such as computers, mobile phones, sound systems etc. thanks to the inverter technology.
The power generator has a 230 V / 50 Hz connection and an LED display for the operating status and oil level warning.
In the event of an overload, the automatic power cut-off intervenes directly, and the generator also has a low oil fuse.
The ECO function ensures a longer running time than other models and, in addition, the anti-slip anti-vibration feet ensure a safe stand.
An integrated petrol tap simplifies filling up the fuel and its low weight guarantees comfortable transport.

The scope of delivery includes the tool, a tool bag and a 12 V charging cable.

Technical data

Power:

• Output voltage: 230V
• Output current: 4.35 A
• Frequency: 50 Hz
• Rated power: 1200 W
• Continuous power: 1000 W

Packaging dimensions:

• Length: 480 mm
• Width: 255 mm
• Height: 425 mm
• Weight: 12,9 kg

Engine:

• Engine type: 4-stroke OHV
• Engine power: 1.3 / 1.8 (kW / PS)
• Displacement: 60 cm³
• Rated speed: 5500 1/min
• Fuel: Petrol
• Tank capacity: 2,8 L
• Running time: 4.8 h
• Engine oil grade: 5W30 I 10W30
• Engine oil: 0.35 l
• Starting system: Reverse start

• Protection class: 23M
• Overload protection available: Yes
• Low oil protection available: Yes
• Noise level indication LWA: 93 dB
• Length: 448 mm
• Width: 236 mm
• Height: 392 mm

Before use

Before commissioning, obtain information from the heating manufacturer about the requirements and connection of the power generator
Select the correct size of power generator. The required electrical power should only load the generator max. 2/3. Observe the inrush currents.
Consult a qualified electrician for a more precise connection to the heating system.
Only operate generators indoors with a suitable exhaust extraction system.
