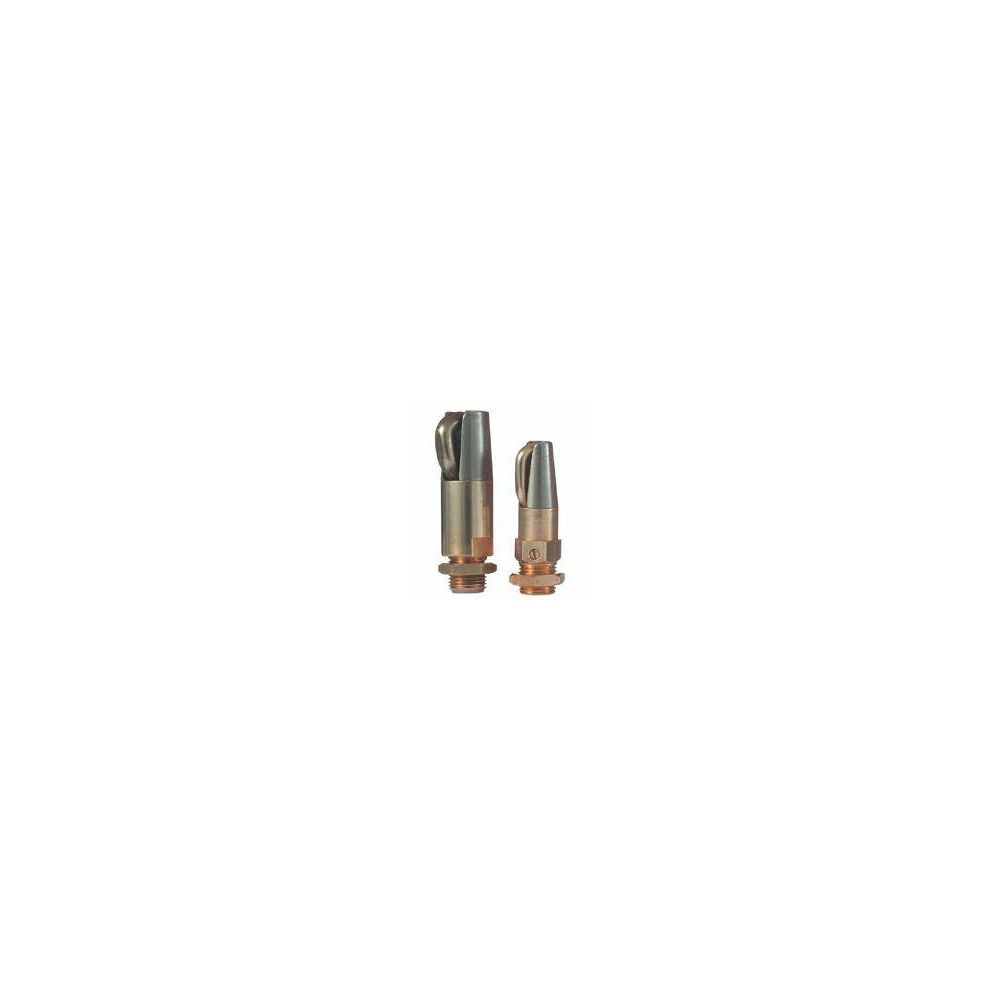

Lubing Nipple Lubing, small version for piglets

Lubing nipple, small version

The LUBING teat nipples for piglets and pigs guarantee fresh drinking water at all times. The robust design ensures high operational reliability with minimum maintenance. The high-quality materials ensure a high acid resistance for all teat nipples, which are completely made of stainless steel.

This design ensures a long service life of the nipples and sprayers.

The nipples and sprayers are connected directly to the pressurized water line (max. 4 bar). Throttle discs are available for all bite nipples in order to individually adapt the flow rates to the stalls. By adjusting the flow rate and the design of the bite nipples, water wastage is reduced to a minimum.

The LUBING bite nipple with brass body and stainless steel tip. Flow rates can be regulated from the outside by means of adjusting screws.

Technical data:
Installation angle: 15°/45°
Installation height young animals: 25 - 60 cm
Flow rate : 0,5 - 2 l/min.
Stocking per nipple : 10 - 12 piglets
