Eider Pasture pump Eider E2 for cattle, cows and horses

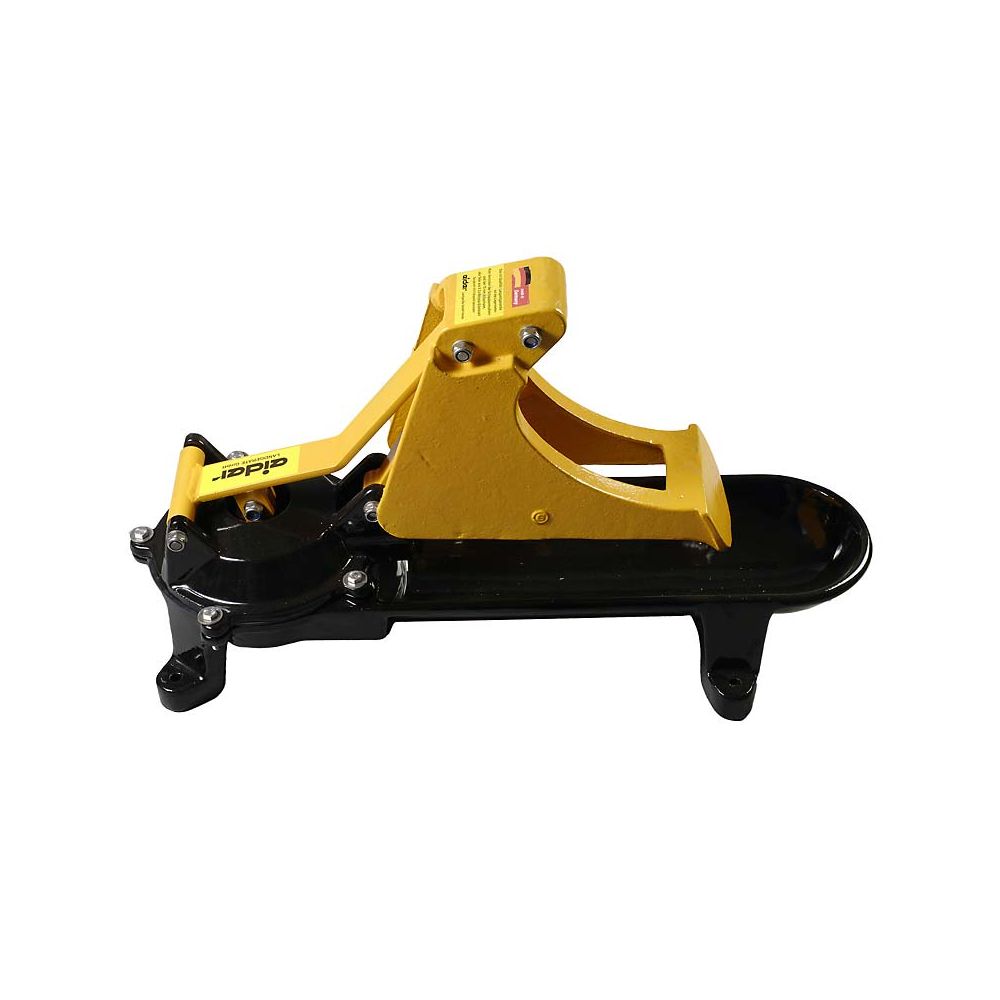

Diaphragm pasture pump EIDER E2 (DLG approved)

The "self-drinker" for cows, young cattle and horses on every pasture.

It is suitable for safely supplying water to 20 dairy cows and 30 young cattle.

The animals get used to the operation of the pump in a short time. The pump consists of an enamelled drinking trough (grey cast iron), an enamelled pump top (grey cast iron) with painted operating levers also made of grey cast iron and a diaphragm.

The water flow is controlled by two valve cones with seal.

The screws, nuts and shafts are made of stainless steel and therefore rustproof.

TOP-QUALITY "Made in Germany" for cattle and horses

• - made of indestructible cast iron
• - large enamelled drinking trough
• - enamelled lid
• - welded levers (no breaking possible)
• - corrosion-resistant hose connection
• - corrosion-resistant valve cone
• - screws, nuts and shafts are made of stainless steel
• - almost wear-free lifting mechanism
• - 8 m suction capacity (distance or height)
• - easy to handle for cattle and horses
• - extremely weather resistant
• - with irritant water zone
• - robust design for a very long service life
• - insensitive to frost
• - special lacquering
• - almost maintenance-free
• - delivery rate: 0,4 l / stroke
• - 1" connection for pipes or pump hose

technical data:

• length: approx. 710 mm
• width: approx. 235 mm
• Height: approx. 430 mm
• Weight: approx. 33 kg
• Stroke: approx. 28 mm
• Pipe connection: 1" (inch)
• Diaphragm diameter: approx. 220 mm
