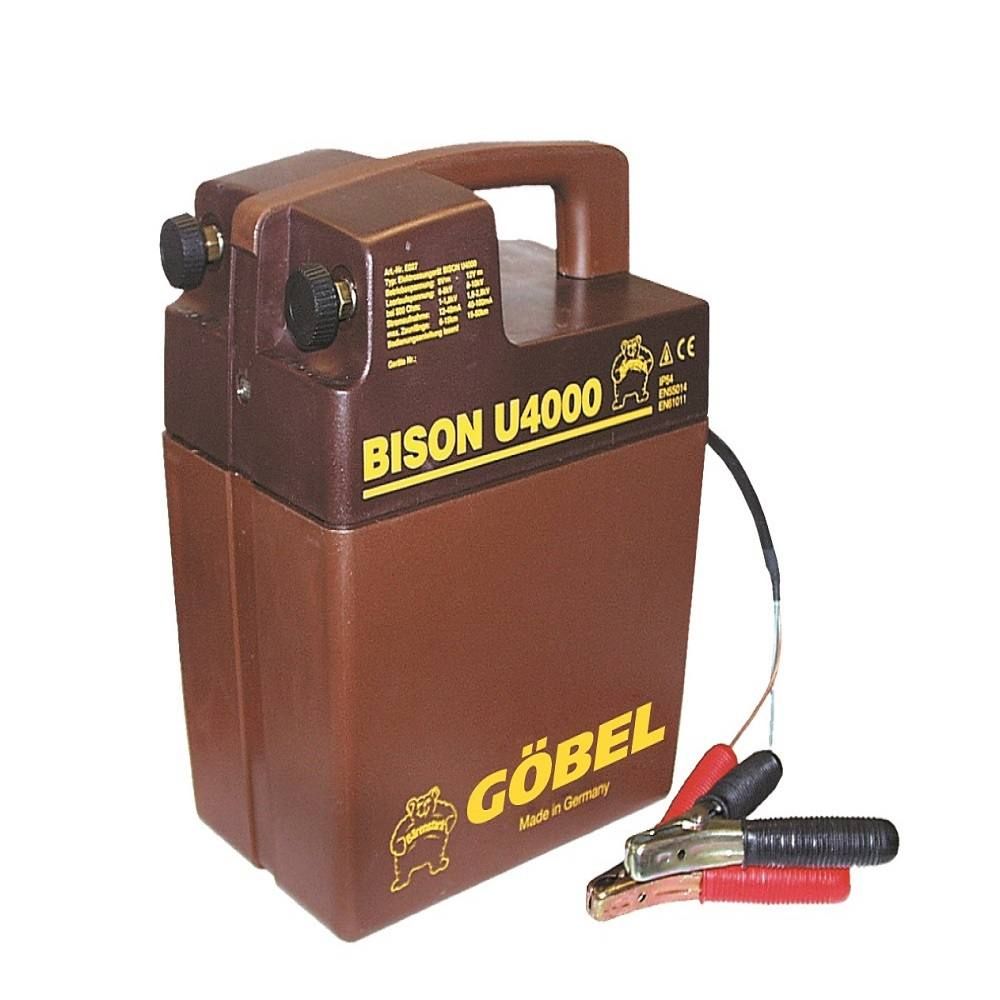

Elektra Weidezaungeräte Bison U 4000, battery device, without battery, with network attachment

Bison U 4000, battery unit, with mains supply unit

Combined unit BISON U 4000 9/12 Volt with mains adapter for 230 Volt operation

• 2 selectable power levels
• inexpensive and powerful
• with Quick-Shock technology
• weed-killing and versatile
• with fence and battery control
• particularly good grounding due to 2 ground stakes included in the scope of delivery

Technical data Bison U 4000

Operating voltage: 9 V strong 9V extra strong

Open-circuit voltage: approx. 7200 V approx. 9100V

Voltage at animal contact: approx. 4600 V approx. 5700V

Voltage at 500 Ohm (short circuit): approx. 1800 V approx. 2200V

Pulse energy: approx. 0,25J approx. 0,4J

current consumption: approx. 14-28mA approx. 19-48mA

max. fence length (CEE): approx. 6km approx. 12km

rec. Fence length (depending on vegetation): up to 2-4km approx. 5-8km

operating voltage: 12V/230V strong 12V/230V extra strong

open circuit voltage: approx. 7800 V approx. 9800 V

Voltage at animal contact: approx. 5100 V approx. 6400 V

Voltage at 500 Ohm (short circuit): approx. 2300 V approx. 2900 V

Pulse energy: approx. 0.85J approx. 1.30J

current consumption: approx. 28-75mA approx. 35-110mA

max. fence length (CEE): approx. 25km approx. 25km

rec. Fence length (depending on vegetation): approx. 6-15km approx. 8-18km

Recommendation for use:

Our classic, the BISON U4000, is a device for all applications where either small or medium power is required. It is just as suitable for use on larger paddocks and for game defence as well as for operation on sheep nets as in the yard and garden. The low power consumption, the switchable power levels and the possibility of 9V or 12V operation make it the 1st choice when it comes to flexibility and economy. Thanks to the integrated deep discharge protection, your 12V battery is now also optimally protected.
