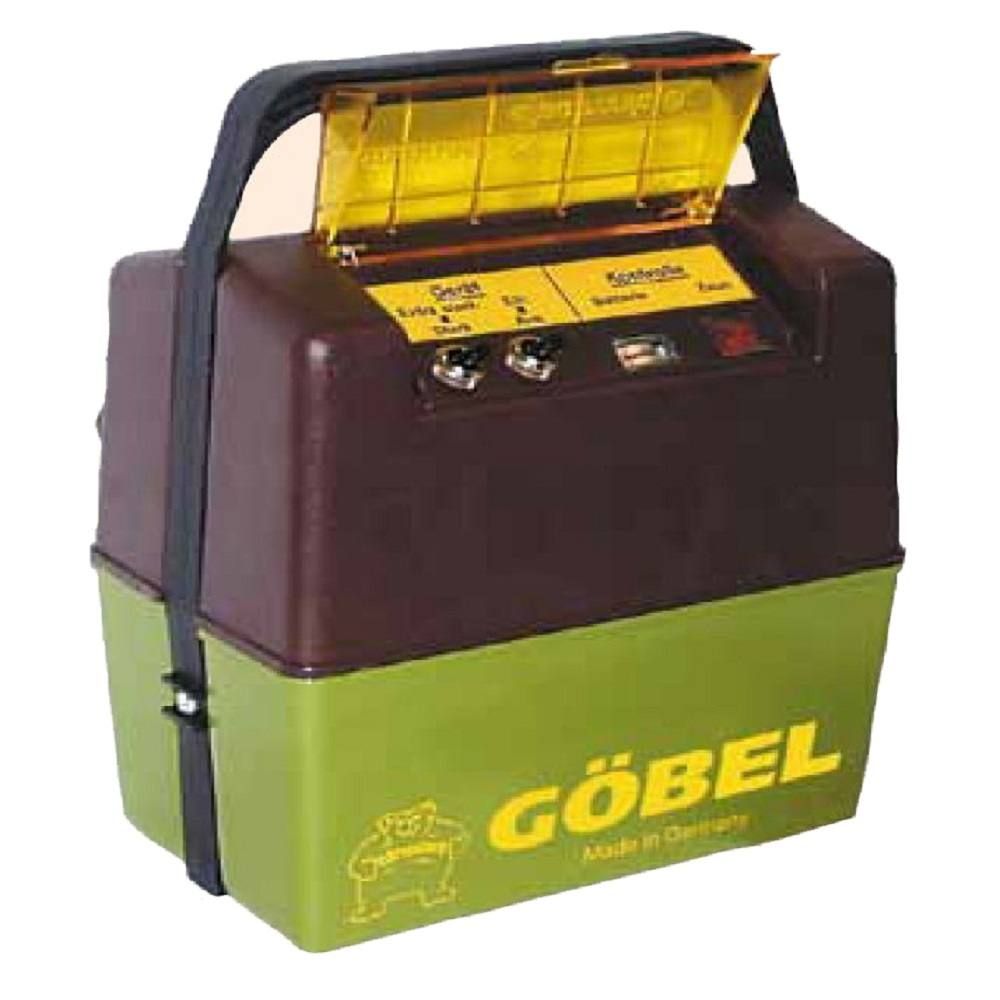

Elektra Weidezaungeräte Bull B 400, battery device, without battery

Bärenstark B 400, battery unit

• powerful - switchable
• 2 power levels "strong / extra strong
• Fence and battery control
• Insensitive to vegetation

Technical data bärenstark B 400

Operating voltage: 9V strong 9V extra strong

Open-circuit voltage: approx. 6500 V approx. 7500 V

Voltage at animal contact: approx. 2800 V approx. 3500 V

Voltage at 500 Ohm (short circuit): approx. 1200 V approx. 1500 V

Pulse energy: approx. 0.17 J approx. 0.28 J

Current consumption: approx. 18 mA approx. 24 mA

max. fence length (CEE): approx. 6 km approx. 7 km

rec. Fence length (depending on vegetation): approx. 1-3 km approx. 2-5 km

Application recommendation for battery unit B 400

Battery devices are the optimal choice when there is no possibility to connect to the mains and the higher power of a battery device is not required. Typical areas of use are portion pastures, paddocks and herding small animals in the yard and garden. Depending on the design, soil conditions and vegetation, the possible fence lengths vary between one and eight kilometres. Switchable power levels not only allow optimum adaptation to different herding conditions, but also enable particularly economical operation.
