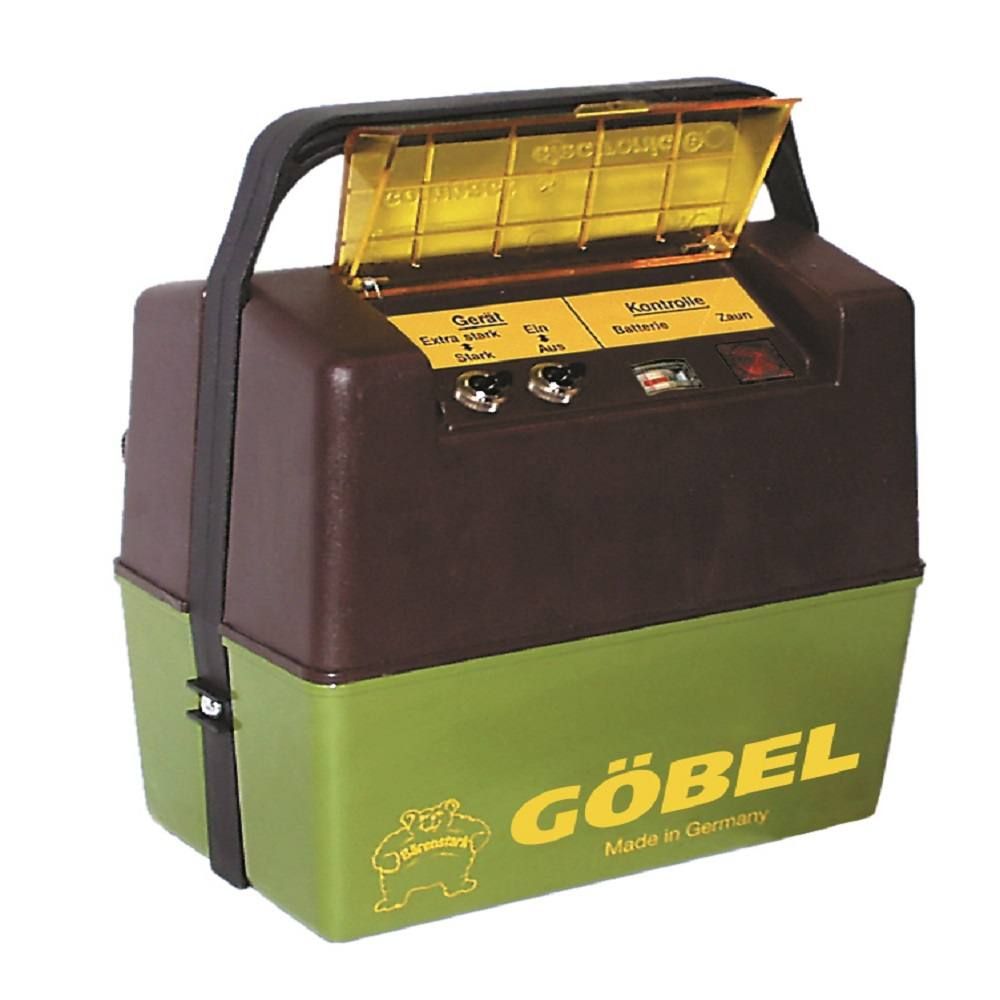

Compact B 300, battery unit switchable
- powerful - switchable
- Battery device for normal application
- 2 power levels "strong / extra strong
- fence and battery control
Technical data: compact B 300
Operating voltage: 9V strong 9V extra strong
Open-circuit voltage: approx. 6000 V approx. 7000 V
Voltage at animal contact: approx. 2500 V approx. 2900 V
Voltage at 500 Ohm (short circuit): approx. 1100 V approx. 1300 V
Pulse energy: approx. 0.15 J approx. 0.25 J
Current consumption: approx. 15 mA approx. 20 mA
max. fence length (CEE): approx. 5 km approx. 6 km
rec. Fence length (depending on vegetation): approx. 2 km approx. 2-4 km
Recommendation for use of Compact B300 battery units
Battery devices are the optimal choice when there is no possibility of mains connection and the higher power of a battery device is not required. Typical areas of application are portion pastures, paddocks and herding small animals in the yard and garden. Depending on the design, soil conditions and vegetation, the possible fence lengths vary between one and eight kilometres. Switchable power levels not only allow optimum adaptation to different herding conditions, but also enable particularly economical operation.
EAN | 4029339111030 |
---|---|
Manufacturer Article no. | 11103 |
WEEE Number | 23773535 |
Manufacturer | Elektra Weidezaungeräte |
optische Kontrollleuchten | Yes |
geeignet für Wandmontage | No |
Spritzwassergeschützt | Yes |
Bewuchsvernichtend | No |
Versorgungsspannung | 9 Volt dry cell battery |
Ausgangsspannung (Leerlauf) | 6000 V, 7000 V |
Stromverbrauch | 13-17 mA, 20-30 mA |
Ladeenergie (Joule) | 0,15 J, 0,3 J |
max. Entladeenergie (Joule) | 0,11 J, 0,21 J |
Spannung bei Tierberührung | 2500 V, 2900 V |
max. Zaunlänge nach VDE | 3 km, 4,5 km |
max. Zaunlänge ohne Bewuchs | 1,2 km, 3 km |
Delivery time | 2-3 Tage |
Manufacturer: Electra GmbH, In der Bach 3, 34513 Waldeck, DE, info@electra-gmbh.de
