Göbel Frost protection heating cable 36 m with thermostat

Frost protection heating cable, length: 37m

582 Watt

230 volts

• keeps your water pipe guaranteed frost-free
• built-in thermostat works independently
• tested VDE safety
• do not install in the browsing area of animals - only use 24 volt heating cables here
• not suitable for heating pipes
• in case of additional insulation, do not insulate the thermostat as well
• Protect the area that the animals can nibble on with a bite guard
• IPX7
• prevents freezing of water pipes
• Thermostat in the heating cable switches the cable on automatically

What to look out for with 230 V heating cables:

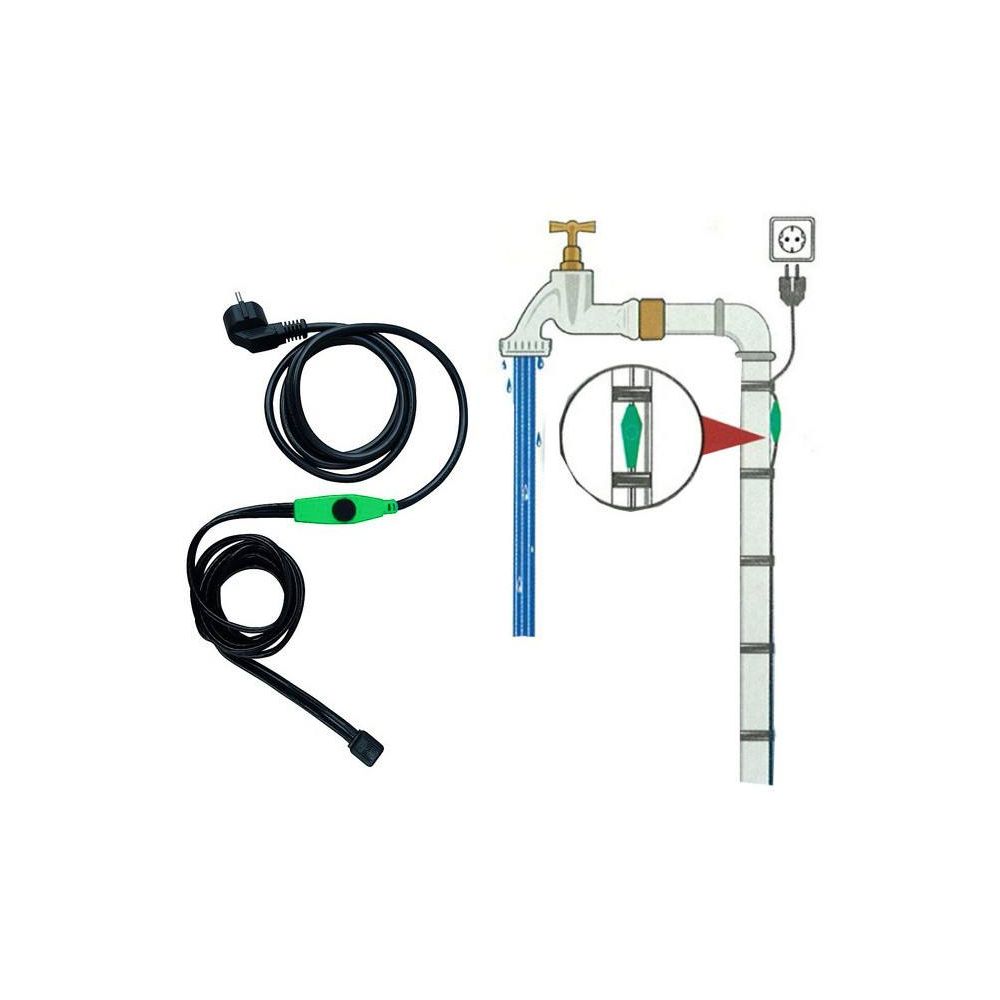

1. always attach the heating cable to the underside of the pipe
2. the water pipe must be earthed
3. 230 V heating cables must be plugged in and connected to a power supply with a circuit breaker (FI switch 30 mA).
4. The heating cables must not be shortened and should therefore already be ordered in the correct length.
5. Remaining lengths can be wound around the pipe in coils (note that a coil spacing of at least 15 mm must be maintained here).
6. Do not bend the heating cable and observe the max. bending radius of approx. 50 mm.
7. The heating cables can be fixed to the pipe with insulating tape or aluminium tape.
8. When used on plastic pipes, the pipe must be wrapped with aluminium tape before the heating cable is laid.
9. the pipe and the heating cable should be insulated with an insulation of at least 13 mm
10. The thermostat of the heating cable should be placed at the coldest position of the pipe.
11. the thermostat must be only moderately insulated
12. do not use 230 V heating cables in the browsing area of animals
13. the installation must be carried out by a qualified specialist in accordance with VDE0100.
