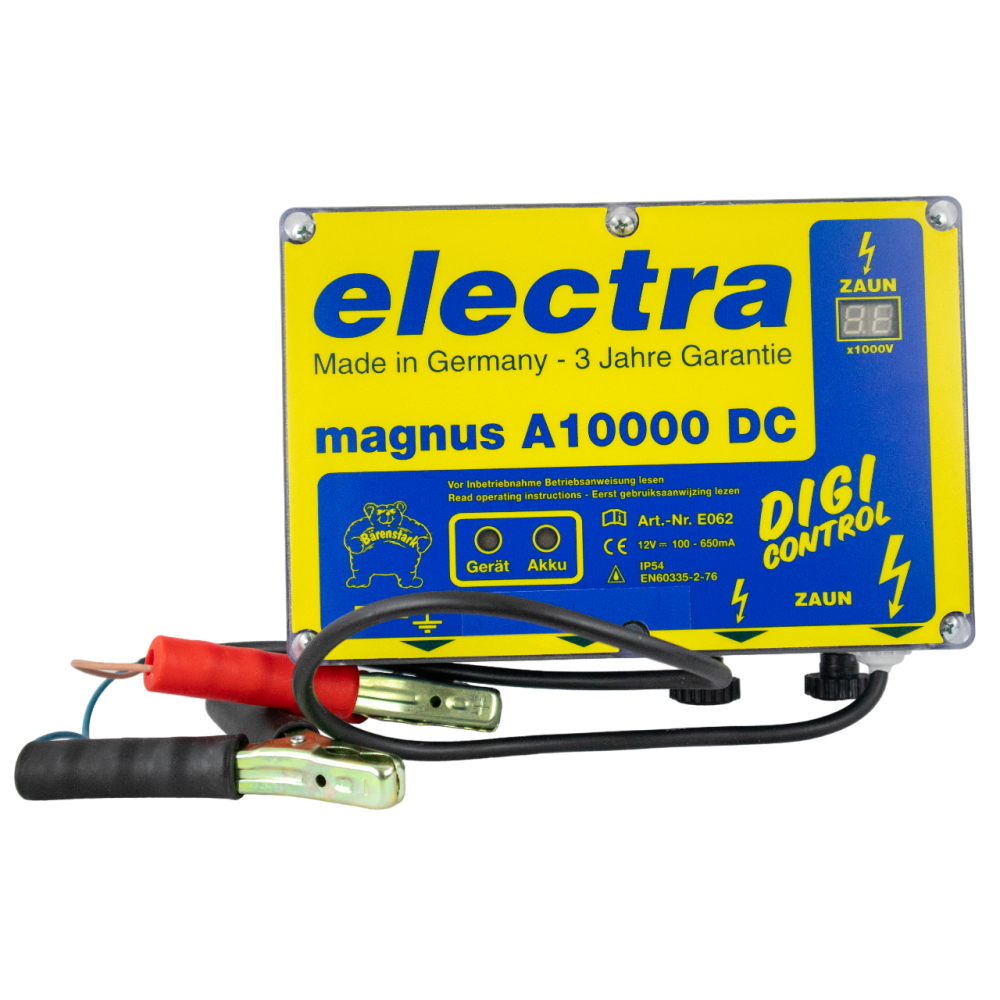

Elektra Weidezaungeräte Magnus A 10000 DC, 12V battery supply without battery, with battery deep discharge protection

Magnus A 10000 DC, 12 Volt battery device, without battery, with deep discharge protection

• High-voltage electric fence unit for 12V operation
• very high power reserves
• with battery deep discharge & overcharge protection
• with LED earth quality control
• with device & battery control
• with digital fence voltage display,
• especially low impedance
• for game defence with long fences
• outstanding herding safety

The newly developed magnus A 10000 DC high performance electric fence unit is the right choice for the most difficult applications in the field of 12 V battery technology. The device has a particularly low impedance and is therefore ideally suited for fences of maximum length. It absolutely destroys vegetation and, despite the high impact power, is economical in battery consumption. It has a microprocessor control, a built-in deep discharge protection, a digital fence voltage display and a ground control display, with which the quality of the grounding can be monitored. More sensitive animals can be herded by using the second fence output with reduced power.

Technical data:
Operating voltage:12 V
Open circuit voltage:approx. 9500 V
Voltage at animal contact:approx. 7200 V
Voltage at 500 Ohm (short-circuit): approx.3600 V
Pulse energy: approx.4.5 J
Current consumption:30-450mA
Max. fence length (CEE): approx. 120 km
Recom. fence length ( depending on vegetation): approx. 120 km Fence length (depending on vegetation):up to 50 km
