Frost protection heating cable 14 m with thermostat
Frost protection heating cable
Length: 14m
Power:224 Watt,
power connection:230 Volt (with thermostat)
- keeps your water pipe guaranteed frost-free
- built-in thermostat works independently
- tested VDE-safety
- do not install in the browsing area of animals - only use 24 volt heating cables here
- not suitable for heating pipes
- in case of additional insulation, do not insulate the thermostat as well
- Protect the area that the animals can nibble on with a bite guard
- IPX7
- Made in EU
- prevent freezing of water pipes
- Thermostat in the heating cable switches the cable on automatically
What is to be considered with 230 V heating cables:

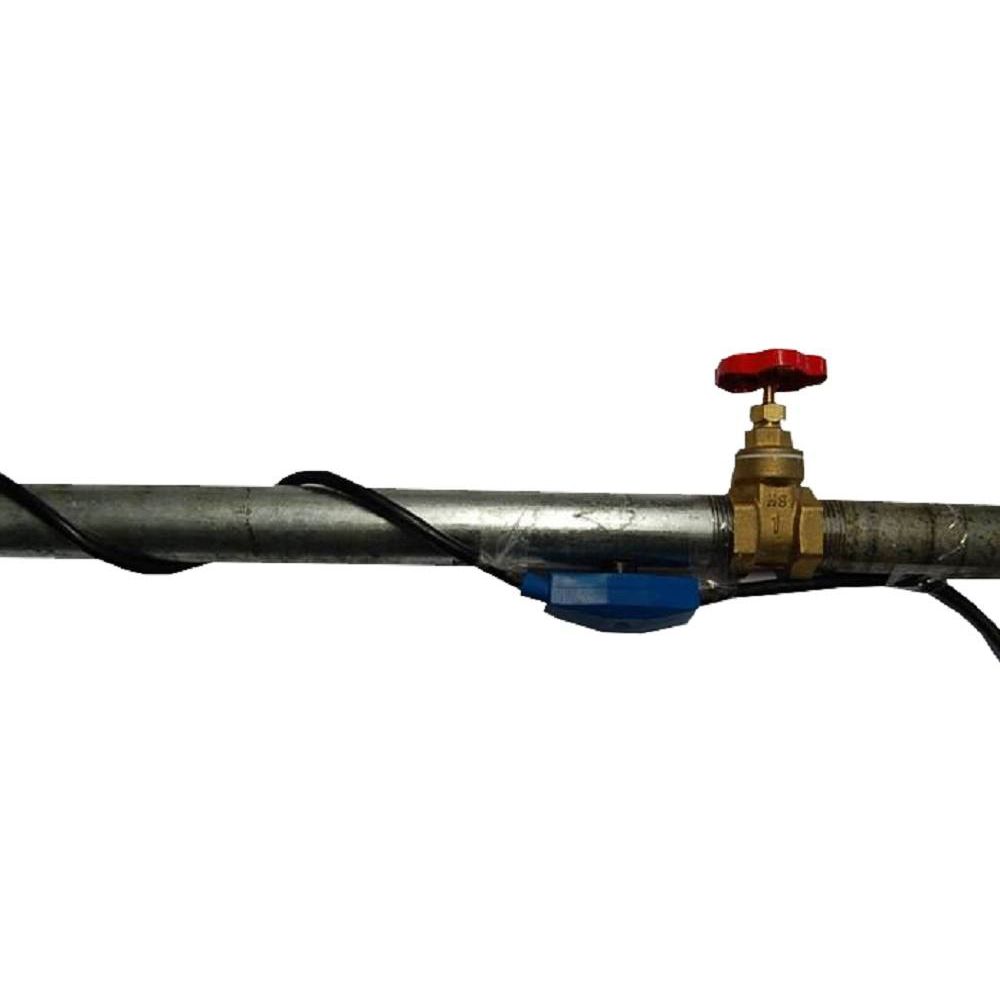

- always attach the heating cable to the underside of the pipe
- the water pipe must be earthed
- the 230 V heating cables must be plugged in and connected to a power supply with a circuit breaker (FI switch 30 mA)
- the heating cables must not be shortened and should therefore already be ordered in the correct length
- remaining lengths can be wound around the pipe in coils (note that a coil spacing of at least 15 mm must be maintained here). 15 mm must be observed)
- do not bend the heating cable and observe the max. bending radius of approx. 50 mm
- the heating cables can be fixed to the pipe with insulating tape or with aluminium tape
- when used on plastic pipes, the pipe must be wrapped with aluminium tape before the heating cable is laid
- the pipe and the heating cable should be insulated with an insulation of min. 13 mm insulation

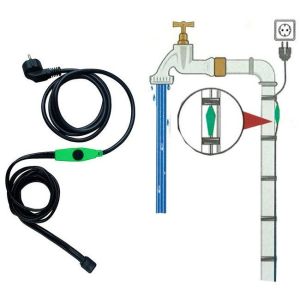

- the thermostat of the heating cable should be placed at the coldest position of the pipe
- the thermostat should be only moderately insulated
- do not use 230 V heating cables in the browsing area of animals
- installation must be carried out by a qualified specialist according to VDE0100
Delivery time | 2-3 Tage |
---|---|
EAN | 4029339710172 |
Manufacturer Article no. | 71017 |
WEEE Number | 83553082 |
Manufacturer | Göbel |
Pestizid | No |
Degree of protection | IP X7 |
Manufacturer: Fritz Göbel GmbH & Co. KG, Am Friedrichsplatz 4, 34508 Willingen, DE, info@fritzgoebel.de
