Göbel Frost protection heating cable 2 m with thermostat

Frost protection - heating cable from 1 m to 48 m length

1 - 48 meters heating cable

17 to 768 Watt power

Please select the desired length/watt.

• keeps your water pipe guaranteed frost-free
• built-in thermostat works independently
• tested VDE safety
• do not install in the browsing area of animals - use only 24 volt heating cables here
• not suitable for heating pipes
• in case of additional insulation, do not insulate the thermostat as well
• Protect the area that the animals can nibble on with a bite guard
• IPX7
• Made in EU
• prevent freezing of water pipes
• Thermostat in the heating cable switches the cable on automatically

What should be observed with 230 V heating cables:

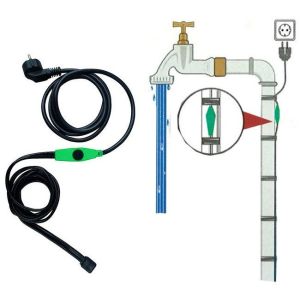

• Always attach the heating cable to the underside of the pipe.
• the water pipe must be earthed
• 230 V heating cables must be plugged in and connected to a power supply with a circuit breaker (FI switch 30 mA).
• The heating cables must not be shortened and should therefore already be ordered in the correct length.
• Remaining lengths can be wound around the pipe in coils (note that a coil spacing of at least 15 mm must be maintained here).
• Do not bend the heating cable and observe the max. bending radius of approx. 50 mm.
• The heating cables can be fixed to the pipe with insulating tape or aluminium tape.
• When used on plastic pipes, the pipe must be wrapped with aluminium tape before the heating cable is laid.
• the pipe and the heating cable should be insulated with an insulation of at least 13 mm
• The thermostat of the heating cable should be placed at the coldest position of the pipe.
• the thermostat must be only moderately insulated
• do not use 230 V heating cables in the browsing area of animals
• the installation must be carried out by a qualified specialist in accordance with VDE0100.
