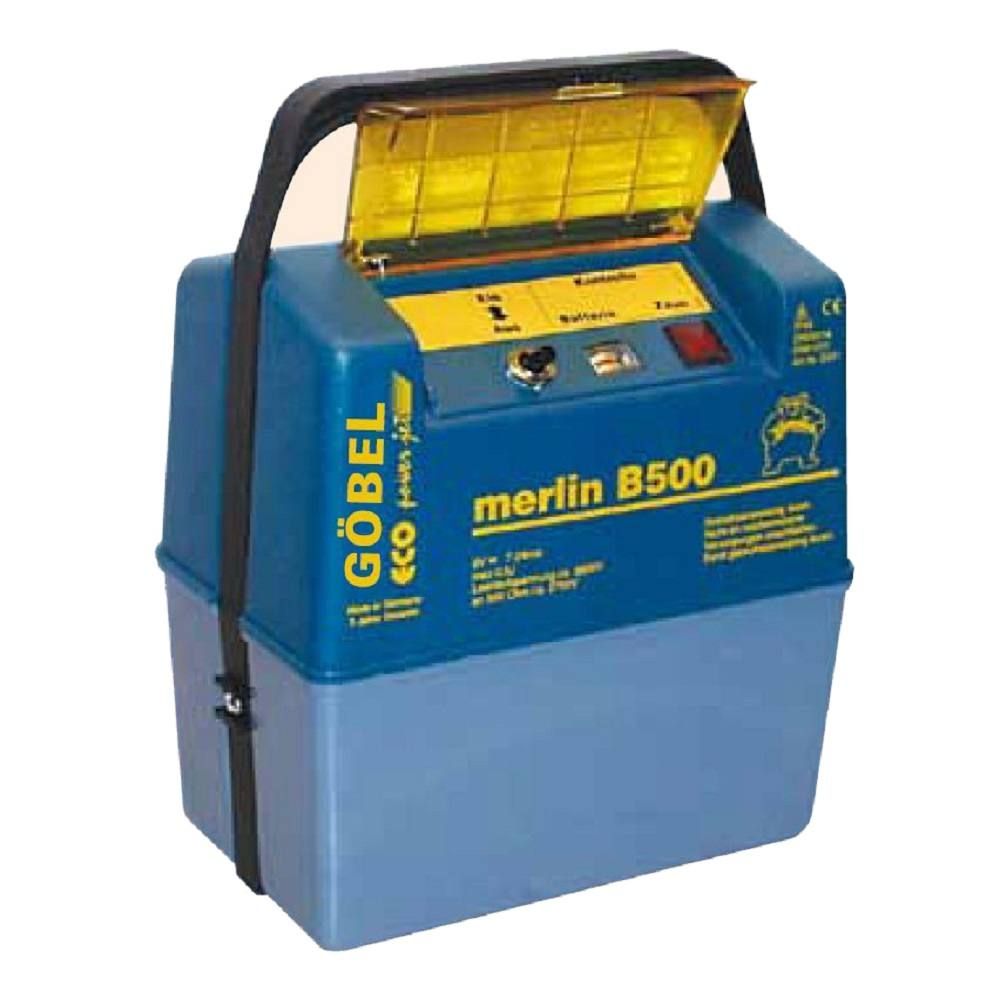

Elektra Weidezaungeräte Merlin B 500, battery device, without battery

Merlin B 500, battery device optimal for alkaline batteries from 75 AH

• most powerful battery unit
• high power reserves
• with power saving circuit
• fence and battery control
• insensitive to vegetation
• for shorter fences also for game defence
• ground stake with device holder, included in delivery
• optimized for alkaline battery from 75 AH

Technical data merlin B 500

operating voltage: 9 V

open circuit voltage: approx. 8800 V

Voltage at animal contact:ca. 4900 V

Voltage at 500 Ohm (short circuit):approx. 2700 V

Pulse energy: approx. 0.45 J

Current consumption:10 - 45 mA

max. fence length (CEE): approx. 12 km

rec. Fence length (depending on vegetation): approx. 3-8 km

Application recommendation for merlin B500 battery device

Battery devices are the optimal choice when there is no possibility to connect to the mains and the higher power of a battery device is not required. Typical areas of application are portion pastures, paddocks and herding small animals in the yard and garden. Depending on the design, soil conditions and vegetation, the possible fence lengths vary between one and eight kilometres. Switchable power levels not only allow optimum adaptation to different herding conditions, but also enable particularly economical operation.
